Description

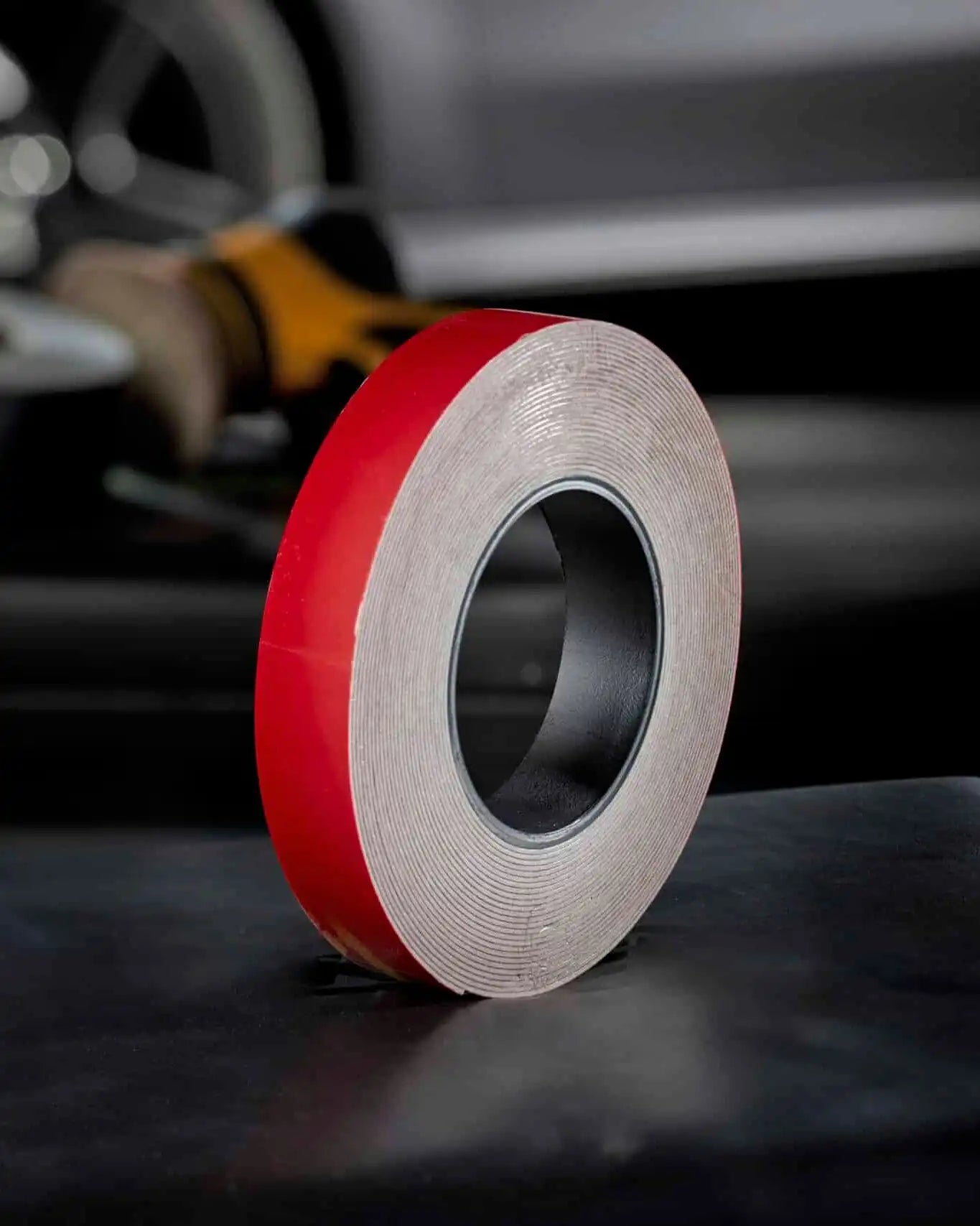

JTAPE Grey Double Sided Acrylic Tape is a reinforced acrylic closed-cell foam tape with a high tack which utilises a high-strength performance acrylic adhesive. The closed-cell foam construction makes the tape ideal for both internal and external fixings in all weather conditions.
This double-sided, heavy-duty automotive tape can effortlessly bond and mount various materials with strong adhesion, without budging. And even with its high-strength adhesive, it can still be removed without leaving behind stubborn residue.
The tape has excellent adhesion to a wide range of substrates including plastics and metals and is ideal for bonding emblems, nameplates, plastic panels and metals.
Available with 1.1mm thickness in 6mm x 10m, 9mm x 10m, 12mm x10m, 19mm x 10m & 25mm x 10m, or 0.8mm thickness in 6mm x 10m. Other sizes available upon request.
Key Features
- Strong adhesion to easily bond emblems, nameplates, plastic panels and metals
- High strength performance reinforced acrylic adhesive ideal for all weather conditions
- Closed-cell foam construction to suit internal or external fixtures
- Excellent temperature resistance ranging from -200C (-40F) to 1800C (3560F)
Best For
- Emblems
- Nameplates
- Plastic panels
- Metals
Available Sizes
- 1/4" x 33 ft
- 1/2" x 33 ft
- 7/8" x 33 ft
Technical Specifications
| Carrier | Acrylic foam |
|---|---|
| Adhesive | Solvent-based acrylic |
| Colour | Grey (with red HDPE release liner) |
| Thickness | 1.10mm (+/-5%) |
| Peel Adhesion (20 mins) | 68N/25mm (+/-10%): 20 mins [ASTM D-3330: F] |
| Temperature Range | -40 degrees C (-40 degrees F) to 180 degrees C (355 degrees F) |
| Tensile Strength | 175N/cm (SUS: 50mm/min; 25mm², 24hr) [ASTM D-897] |
| Elongation at Break | 750% |
| Dynamic Shear | 540N (SUS 50mm/min; 25mm²) [ASTM-D1002] |
| Static Shear | >10,000min. 1000g @ 110 degrees C (25mm²) [ASTM D-3654] |
